7000系列工業阻火器
規格：圖示型號8017011, 8017012, 8017016
單位：臺
瀏覽次數：5012
性能標簽：

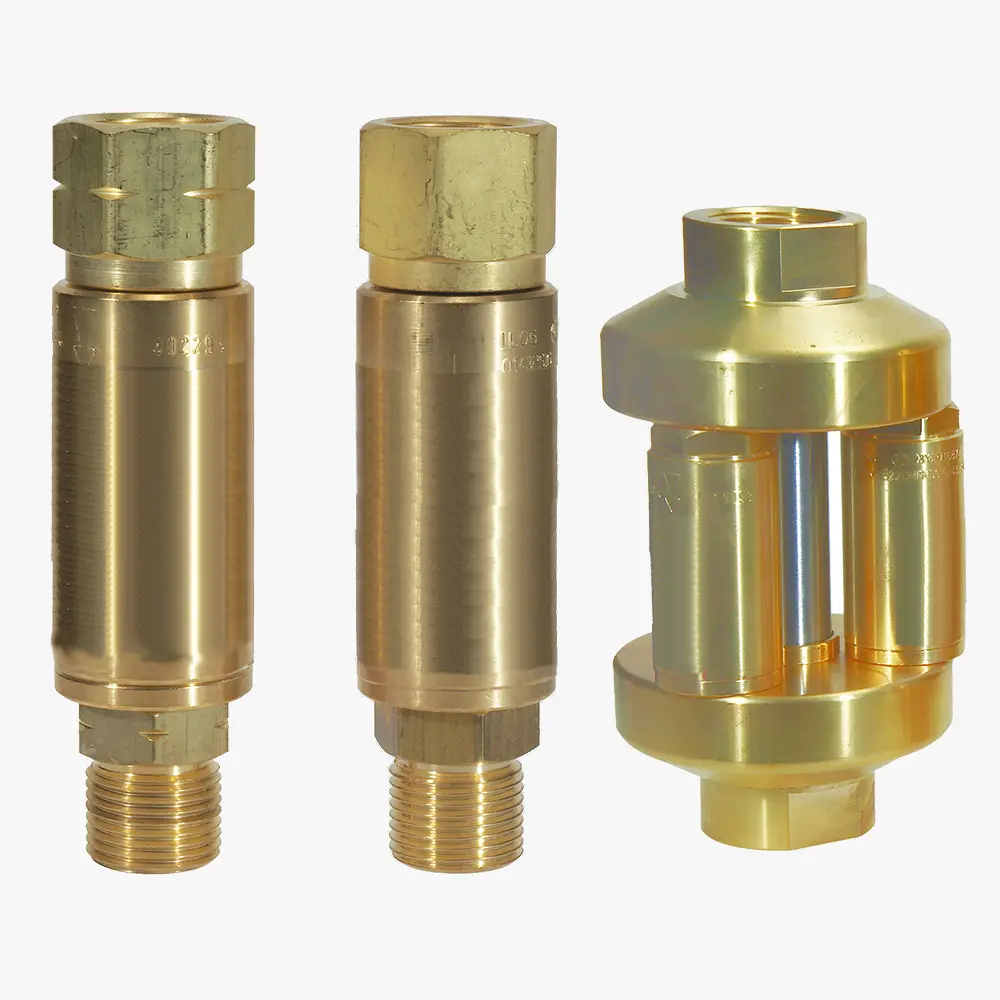

7000系列工業阻火器，圖示型號8017011, 8017012, 8017016
產品詳細描述
工業阻火器可以很容易地安裝在供氣點、供氣管線或火炬上的大多數減壓閥的出口配件上。CONCOA工業阻火器使用干式屏障來熄滅回火。避雷器有助于滿足監管要求，并防止最常見的事故原因，如逆流、回火和軟管回燃。每個CONCOA回火防止器都有一個內置的100微米入口過濾器、逆流止回閥（止回閥）、阻火器和熱切斷閥。回火防止器為進行氧氣焊接、加熱和切割的制造設施提供了所需的可靠性和安全性。
主要特征
- 彈簧加載止回閥可防止氣體逆流和意外混合
- 可選黃銅和316L不銹鋼閥體，便于所有技術氣體和連接
性能指標
- 本體及內部: 316L不銹鋼; 黃銅及黃銅內部器件
- Elastomers: FKM (適用于不銹鋼型號); 氯丁乙烯 (適用于黃銅型號)
- 尾部連接: 1/4"FNPT
- 溫度傳感器: 聚乙烯
- 閥彈簧: 316不銹鋼
- 重量: 不銹鋼型號1.4 lbs (0.64 kg) 不銹鋼型號; 黃銅型號1.5 lbs (0.68kg)
- 符合xing: BAM certified
訂貨信息
| Part Number | Description | Connections | Max PSIG | Max SCFH @ Max PSIG |
|---|---|---|---|---|
| 8017001 | Regulator Mount Medium Flow Autostop Arrestor for Fuel Gases (Acetylene, Hydrogen, LPG) | 9/16 in -18 (B) LH Int/Ext | 15 PSIG Acetylene; 50 PSIG Hydrogen, LPG |
508 SCFH Acetylene, 5213 SCFH Hydrogen, 1100 SCFH LPG |
| 8017002 | Regulator Mount Medium Flow Autostop Arrestor for Oxygen | 9/16 in -18 (B) RH Int/Ext | 143 PSIG | 3745 SCFH |
| 8017003 | Regulator Mount Medium Flow Arrestor for Fuel Gases (Acetylene, Hydrogen, LPG) | 9/16 in -18 (B) LH Int/Ext | 15 PSIG Acetylene; 50 PSIG Hydrogen, LPG |
349 SCFH Acetylene, 3308 SCFH Hydrogen, 698 SCFH LPG |
| 8017004 | Regulator Mount Medium Flow Arrestor for Oxygen | 9/16 in -18 (B) RH Int/Ext | 143 PSIG | 2307 SCFH |
| 8017005 | Regulator Mount High Flow Arrestor for Fuel Gases (Acetylene, Hydrogen, LPG) | 9/16 in -18 (B) LH Int/Ext | 15 PSIG Acetylene; 50 PSIG Hydrogen, LPG |
508 SCFH Acetylene, 5213 SCFH Hydrogen, 1100 SCFH LPG |
| 8017006 | Regulator Mount High Flow Arrestor for Oxygen | 9/16 in -18 (B) RH Int/Ext | 143 PSIG | 3745 SCFH |
| 8017007 | Torch Mount Moderate Flow Arrestor for Fuel Gases (Acetylene, Hydrogen, LPG) | 9/16 in-18 (B) LH Int/Ext | 15 PSIG Acetylene; 50 PSIG Hydrogen, LPG |
224 SCFH Acetylene, 2490 SCFH Hydrogen, 526 SCFH LPG |
| 8017008 | Torch Mount Moderate Flow Arrestor for Oxygen | 9/16 in-18 (B) RH Int/Ext | 143 PSIG | 1835 SCFH |
| 8017009 | Regulator Mount High Flow Brass Arrestor for Fuel Gases (Acetylene, Hydrogen, LPG) | 1/4 in FNPT | 15 PSIG Acetylene; 50 PSIG Hydrogen, LPG |
508 SCFH Acetylene, 5213 SCFH Hydrogen, 1100 SCFH LPG |
| 8017010 | Regulator Mount High Flow Brass Arrestor for Oxygen | 1/4 in FNPT | 143 PSIG | 3745 SCFH |
| 8017011 | Regulator Mount High Flow Arrestor for Fuel Gases (Acetylene, Hydrogen, LPG) | 3/8 in FNPT | 15 PSIG Acetylene; 50 PSIG Hydrogen, LPG |
508 SCFH Acetylene, 5213 SCFH Hydrogen, 1100 SCFH LPG |
| 8017012 | Regulator Mount High Flow Arrestor for Oxygen | 3/8 in FNPT | 143 PSIG | 3745 SCFH |
| 8017013 | Regulator Mount High Flow Stainless Steel Arrestor for Fuel Gases (Acetylene, Hydrogen, LPG) | 1/4 in FNPT | 15 PSIG Acetylene; 50 PSIG Hydrogen, LPG |
508 SCFH Acetylene, 5213 SCFH Hydrogen, 1100 SCFH LPG |
| 8017014 | Regulator Mount High Flow Stainless Steel Arrestor for Oxygen | 1/4 in FNPT | 143 PSIG | 3745 SCFH |
| 8017015 | Pipeline and Point-of-Supply Arrestor for Fuel Gases (Acetylene, Hydrogen, LPG) | 1 in FNPT | 15 PSIG Acetylene; 50 PSIG Hydrogen, LPG |
1226 SCFH Acetylene, 13,646 SCFH Hydrogen, 2880 SCFH LPG |
| 8017016 | Pipeline and Point-of-Supply Arrestor for Oxygen | 1 in FNPT | 143 PSIG | 10,063 SCFH |
